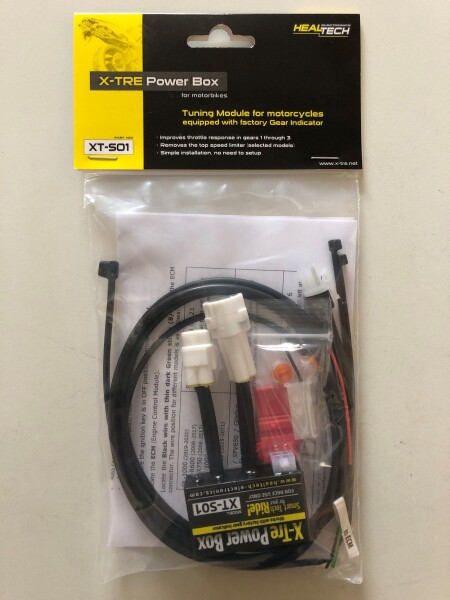

X-TRE Power BOX XT-S01 für Suzuki GSX 1250 FA Bj.2010-2017
Alles original verpackt neu mit deutscher und englischer Anleitung
Die X-Tre Power Box hebt die von den Motorradherstellern installierte Leistungsbeschränkung auf, zusätzlich wird die Top Speed-Begrenzung von Suzuki Motorrädern ab 1000ccm aufgehoben. Entwickelt für japanische Motorräder mit integrierter Ganganzeige.
Die X-Tre Power Box besitzt einen integrierten Microchip der die Drosselungen aufhebt und gleichzeitig den korrekten Gang anzeigt. Diese Eigenschaft ist einzigartig, während andere TRE-Geräte die Originale Ganganzeige deaktivieren.
Der X-TRE verbessert die Gasreaktion/ Beschleunigung in den unteren Gängen und verbessert auch das Drehmoment im unteren Drehzahlbereich und deaktiviert den Geschwindigkeitsbegrenzer (Speed Limiter) an bestimmten Modellen.
Der Elektronische Drossel-Deaktivator kombiniert die Vorteile aller unterschiedlichen heute erhältlichen FEDD-Geräte.
Die serienmäßige Ganganzeige bleibt weiterhin in Funktion.
Die Einheit funktioniert einwandfrei mit oder ohne andere(n) Geräte(n) des elektronischen Zubehörmarktes wie z.B. mit dem SpeedoHealer oder dem Power Commander.
Der Einbau des X-TRE nimmt ca. 20 Min. in Anspruch und kann jederzeit in den Werkszustand zurückgesetzt werden.
Das Gerät ist nach der Installation voll funktionsfähig.
Man kann verschiedene Setthings ausprobieren um zu sehen welches einem persönlich am Besten liegt.
z.B.: durch Auswahl von Anzeige 5 oder 6 bei einer B-King wird der RPM-Limiter in jedem Gang früher ausgelöst, was für einige in der „Break-in“ Phase hilfreich sein könnte.
Die Einstellung bleibt auch bei Abstecken des Geräts oder wenn die Batterie leer wird.
Selectable Maps
Just like our GIpro/ATRE, the X-TRE comes with user selectable gear maps, offering the same benefit and flexibility. But now, there is no requirement to have an external gear indicator when the bike already has one. Of course, many riders may still want the GIpro unit for the larger and brighter LED display – and for bikes without an OEM dash gear indicator, the GIpro/ATRE is still the best option available today.
No Set-up Needed
After installation, the unit is fully functional, no need to setup. The default gear mapping is the 4th which can be changed easily to 5th or 6th to suit your needs.
Smart Tech
Automatically switches off in Neutral for smooth idle operation; 3 user selectable gear maps – buttonless design; Status LED for troubleshooting; Automatic data link configuration to support all Suzuki models; Low power consumption with Auto Stand-by.
Simple Installation
The tiny box installs in under 30 minutes on most bikes, connecting through OEM plugs (only one wire has to be cut during installation – we bundle high quality gel-sealed quick connects to make quick, simple, and reliable connections without the need for soldering).
Current Used Map Review
Another feature is the ability to simply review the gear map in use. The unit mounts under the fuel tank, out of sight, but the innovative buttonless design makes it possible to review and select maps while sitting on the bike. X-TRE works well with (or without) other electronic devices like an FI Tuner pro, Power Commander, SpeedoHealer, etc.
Bitte vergleichen sie anhand der Fotos ob die Ware bei ihnen passt um Retouren zu vermeiden
Bitte achten sie darauf dass die Ware im original Zustand ist wenn sie diese zurück geben möchten
Bei uns kriegen sie den besten Service
Ihre Vorteile bei uns:
Sendungsverfolgung
Schneller Versand als DHL Paket (Lieferzeit 1-3 Werktage) Optional DHL Express (Lieferzeit 1 Werktag)
Bitte haben sie dafür Verständnis dass ein DHL Paket manchmal Lieferschwierigkeiten haben kann
Auch an Abholstationen aber nur als DHL Paket
Neuware mit Herstellergarantie
Versandkostenfrei
schnelle Kommunikation
Wir versenden aus Deutschland
Wenn Sie etwas bei uns nichts passendes für Ihr Motorrad finden dann schicken sie uns bitte eine E-Mail
Bestellen Sie bis 14:00 Uhr und die Ware wird am gleichen Tag verschickt
X-TRE Power Box
Installation and Operation Manual
for XT-S01 and XT-S02
Before installing this product, please make sure you got the right part for your bike. See the
part number on the packaging and use the Product Advisor on our website to check
compatibility.
These instructions are applicable to a wide range of motorcycles and describe the main
install steps needed for a successful installation.
Disclaimer: Do not attempt to install the product if you don’t have basic mechanical skills.
HealTech Electronics Ltd. and its distributors shall not be liable for any loss or damage
caused by improper installation. If in doubt, please consult with your dealer.
1. Installation
1. Check the supplied parts:
- X-TRE Power Box
- Wiring harness
- Yellow butt connectors, gel-filled (2 pcs)
- Red tap connector, gel-filled
- 4p jumper-plug
- Cable ties (2+1 pcs)
- Velcro strips
- HealTech stickers (2+2 pcs)
2. Make sure the ignition key is in OFF position. Remove the seat.
3. Locate the ECM (Engine Control Module).
4. Locate the Black wire with thin dark Green stripe (B/G), in the ECM
connector. The wire position for different models is as follows:
GSX-R600 (2008-2017)
GSX-R750 (2008-2017)
GSX-R1000 (2007-2017)
Black connector, pin no. 23
Middle row, 2nd terminal from left to right
at the back (wire) side of the connector
SFV400 / SFV650 / Gladius
(2009-2015)
Boulevard C90 / Intruder
C1500 / VL1500 (2013-2017)
Boulevard C50 / Intruder
C800 / VL800 (2009-2017)
Large connector, pin no. 31
Bottom row, 4th terminal from left to right
at the back (wire) side of the connector
ALL other years and models Black / Large connector, pin no. 6
Top row, 6th terminal from right to left at
the back (wire) side of the connector
- 2 -
5. Peel off about 2 cm (0.8”) from the black sleeve (tape) around the wires.
You may disconnect the ECM plug to have more space around the wires.
6. Cut the B/G wire, about 4 cm (1.6”) away from the connector.
7. Use one Yellow butt connector supplied to splice the XTRE Black/Green
wire (also labeled "to ECM") to the B/G wire end, which goes to the ECM
connector.
Usage: Insert the two unstripped wires all the way, and press down the yellow
cap with pliers. Remove the excess gel around the connector with dry cloth.
Visually inspect the splice, and confirm the yellow cap is completely down.
8. Same way, use the other Yellow butt connector to splice the XTRE
Black/White wire to the B/G wire end, which is at the wiring harness side.
9. If you disconnected the ECM connector, re-connect it now.
10. B-King only: Remove the left side plastic engine cover (3 screws) and left
frame side cover (pull out).
Other models: Prop up the fuel tank.
11. Locate the GPS (Gear Position Sensor) coupler.
XT-S01: This 3-pole, white, triangular connector is at the back under the
fuel tank, on the left side. You may find more than one of this
connector under the fuel tank. You need the one that has Blue,
Pink and Black/White leads.
XT-S02: This 6-pole, semi-transparent connector has 5 wires.
12. Disconnect the GP sensor coupler. A long, flat head screwdriver may be
needed to depress the release tang while the connector is separated.
13. Connect the two X-TRE plugs to the GP sensor plugs.
Make sure that none of the metal pins have been pushed out of position,
and the connectors are seated properly.
14. Route the XTRE harness to the box and connect the 4p plug.
15. Connect the XTRE Red wire to a switched +12V wire, e.g. at the 2-pole
rear brake light switch connector, at the fuse box or at the ECM connector
(Orange/Green or White/Green wire). Use the Red wire tap connector
supplied only if the wire outer diameter is less than 3mm (0.12”).
Usage: Place unstripped run wire (switched +12V) inside run channel. Close
side cover until latched. Insert unstripped tap wire (XTRE Red wire)
completely and check its position. Insert the blade (u-contact) and press
down by finger pressure. Then, depress the u-contact with pliers. Close
hinged top cover until latched. Remove the excess gel around the connector
with dry cloth.
16. Test the Gear Indicator operation. The ignition must be ON, side stand
must be UP, and engine stop switch should be in RUN position.
17. If the GI works normally, mount the XTRE box to the inner side of the frame
by the supplied Velcro strips, and secure the box and cables with cable ties.
Otherwise, refer to chapter 3, Troubleshooting.
18. Install the fuse box, relay switch, side covers, fuel tank and seat.
- 3 -
2. Operation
The unit is fully functional after installation. It will improve throttle response,
acceleration and will also remove the speed limiter on 1000cc+ bikes. As such,
using this product is not allowed on public roads.
X-TRE will not disable the in-dash factory gear position indicator. The module
automatically turns off the mapping in Neutral for smooth idle operation.
The unit is fully compatible with other electronics and performance
modifications.
2.1. Reviewing the TRE mode in use
- Put your gearbox in 1st gear
- Have the ignition key in OFF position, stop switch in RUN position, and side
stand UP, then wait at least 5 seconds
- Turn ignition ON
- The gear indicator will show the map in use (4, 5 or 6) for a few seconds,
then it will return to normal operation.
2.2. Selecting TRE mode
- Put your gearbox in 4th, 5th or 6th gear, depending on which mapping you’d
like to set as per the table below:
B-King, DL1000 and all Cruiser models 4
GSX-R1000 (see note), Hayabusa 5
ALL other models 6
- Have the ignition key in OFF position, stop switch in RUN position, and side
stand UP, then wait at least 5 seconds
- Turn ignition ON
- The gear indicator will show the new map (4, 5 or 6) for a few seconds,
then it will blink once. The setting is stored, and the gear indicator will
work normally.
Note:
- You can try different setting and see how it works on your bike.
E.g. using mode 6 on the GSXR1000 2007+ models give better overall
performance but sets the RPM limit lower by about 450 RPMs.
- The unit retains the setting when the battery is removed or
disconnected.
2.3. Restoring factory condition
- Disconnect the 4p plug from the X-TRE box, and connect the jumper-plug
supplied to the harness connector.
- Disconnect the 3p plugs from the box, and connect the bike connectors
together.
- You can now remove the box from the bike, factory condition is restored.
- 4 -
3. Troubleshooting
In case of problems, please check the followings in this order:
1. Make sure the ECM connector is connected and seated properly.
2. Make sure the side stand is UP, engine stop switch is in RUN position and
ignition is ON when you test the gear indicator function.
3. Make sure you did not disconnect anything else, or bent a hose accidentally.
4. Check the 4p and 3p connectors. Make sure the connectors are locked and
none of the pins have been pushed out of position.
Select neutral, and turn ignition ON. The green neutral indicator should
work normally. Otherwise, there is a loose connection in the 3p plugs.
5. Turn ignition off and wait a few seconds. Have the side stand still UP and
the stop switch in RUN position. Turn ignition ON while you watch the XTRE
status LED.
- If the LED does not respond at all, redo the splice at the Red wire tap
connector, or connect the Red wire to the battery positive terminal.
- If the LED blinks once when ignition is turned on then remains On, check
the connection of the X-TRE Black/Green wire, and make sure it is
connected to the B/G wire at the ECM connector side.
- If the LED blinks once when ignition is turned on then remains Off, and
the gear indicator still does not function, check the connection of the
Black/White wire, and make sure it is connected to the B/G wire at the
main wiring harness side.
6. If the gear indicator works but shows one gear only, check the connections
at the 3p plugs, and make sure the sensor wires are Blue, Pink and
Black/White. Otherwise, you got the wrong connector.
If the problem persists, please contact us for advice and describe the situation
in detail.
4. Warranty
The X-TRE is built to last: all leads are protected against reverse voltage, short
circuits and high energy transients. Only high quality components have been
used, and the epoxy layer construction gives extreme protection for the internal
parts from shocks, vibrations and water.
To ensure trouble-free operation from the start, all units have been extensively
tested prior to shipment. For this reason, please make sure you followed the
install steps properly, and refer to the troubleshooting guide before you report a
problem.
Our dealers are offering a 30-day money-back guarantee on HealTech products,
thus you will get your money back if the product does not fulfill your
expectations. (All parts must be returned in original condition for full refund.)
Furthermore the product is covered by our 2-year replacement warranty from
the date of purchase.
