Ganganzeige der Firma Healtech Electronics:
Modell: GPDT-H01 GIpro DS-series G2 für Honda CBR1000RR Bj.2009-2011 mit ABS

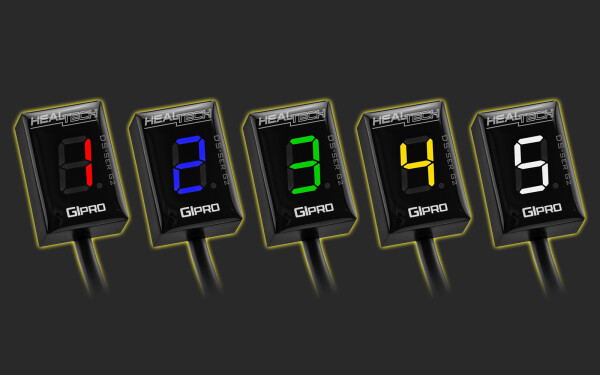

Display Farbe freie Wahl: Rot, Blau, Grün, Gelb, Weiß
Bitte nach dem Kauf Farbwunsch mitteilen. Lieferzeit ca. 1-2 Wochen.
Rot und blau sofort lieferbar.
Größe der Ganganzeige (LxBxH): 30 x 20 x 15 mm
Montage Anleitung: Deutsch und Englisch
Diese neue Ganganzeige ist einzigartig auf dem Markt. Sie ermöglicht eine schnelle Anzeige des gewählten Ganges auch an Motorrädern die nicht über einen eingebauten Gangsensor verfügen.
Anders als herkömmliche Ganganzeigen wird der Gang nicht über montierte Reedkontakte oder aber über den Abgriff der Drehzahl und Geschwindigkeitssignal am Kabelbaum ermittelt.
Die GPDT-Ganganzeigen ermitteln den eingelegten Gang indem sie die Daten direkt aus dem Motorsteuergerät ECU auslesen. Einzigartig auch die schnelle Montage die in wenigen Minuten erledigt ist.
Nur ein Stecker ist am Motorrad aufzustecken, Kabel verlegen und fertig. Die Programmierung erfolgt lediglich durch einmaliges durch schalten der Gänge auf dem Montageständer oder während der Fahrt.
Auch für Laien also sehr schnell erledigt.
Die Qualität ist auf erstklassigen Niveau.
Healtech Electronics Gear indicator
Model: GPDT-H01 GIpro DS-series G2 für Honda CBR1000RR 2009-2011 with ABS
Display color, please choose color: red, blue, green, yellow, white
Please tell us after purchase your display color.
Shipping time 1 or 2 weeks.
Die Ganganzeige passt an folgende Motorräder:
GPDT-H01
HONDA CB250F [with digital trip/odo] (2015), CB300F (2015-2018), CB300R (2018-2021), CB400SF (2008-2020), CB400X (2013-2016),
CB400F (2013-2015), CB500F [non-ABS] (2013-2021), CB500X [non-ABS] (2013-2018), CB500F [ABS] (2013-2020), CB500X [ABS]
(2013-2018), CB600F Hornet [non-ABS] (2007-2013), CB600F Hornet [ABS] (2007-2013), CB650F (2014-2018), CB650R (2019-2021),
CB1000R [non-ABS] (2008-2017), CB1000R [ABS] (2008-2017), CB1100 [non-ABS] (2010-2013), CB1100 [ABS] (2010-2013),
CB1300 S/F [non-ABS] (2003-2015), CB1300 S/F [ABS] (2003-2015), CBF300 (2018-2020), CBF600 [non-ABS] (2008-2012),
CBF600 [ABS] (2008-2012), CBF1000 F/FA [non-ABS] (2006-2018), CBF1000 F/FA [ABS] (2006-2018), CBR125R (2021), CBR250R (2015),
CBR250RR (ALL years), CBR300R (2015-2021), CBR400R (2013-2019), CBR500R [non-ABS] (2013-2021), CBR500R [ABS] (2013-2021),
CBR600F [non-ABS] (2011-2013), CBR600RR [non-ABS] (2003-2020), CBR600F [ABS] (2011-2013), CBR600RR [ABS] (2009-2021),
CBR650F (2014-2018), CBR650R (2019-2021), CBR1000RR Fireblade [non-ABS] (2004-2011), CBR1000RR Fireblade [ABS] (2009-2011),
CMX300 Rebel (2017-2021), CMX500 Rebel (2017-2021), CRF250L (2012-2021), CRF250M (2013-2014), CRF250F (ALL years),
Crossrunner 800 (ALL years), CTX700 [w/o DCT] (2014-2017), Fury [non ABS] (2010-2021), Fury [ABS] (2010-2021), Interstate (2010-2016),
NC400X (2013-2015), NC700 S/X (2012-2017), NC700 SA/XA (2012-2017), NC750 S/X (2014-2021), NC750 SA/XA (2014-2020),
NT700V Deauville (2006-2015), Sabre (2010-2012), Stateline (2010-2017), VFR800 Interceptor [non-ABS] (2006-2013),
VFR800 Interceptor [ABS] (2006-2013), VFR800X (ALL years), VT400 [FI model] (2009-2014), VT750C [FI model] (2007-2021),
VT750S [FI model] (2007-2009), VT1300 [ALL variants] (2010-2016), VTX1800 (2005-2012), XL125V Varadero (2007-2014),
XL700V Transalp [non-ABS] (2008-2014), XL700V Transalp [ABS] (2008-2014), XL1000V Varadero (2003-2012),
TRX ATVs [FI model] (ALL years)
1. Foreword
Congratulations on your purchase of a GIpro DS gear position indicator.
The GIpro products from HealTech Electronics Ltd. are the most advanced gear position
indicators on the market today.
This product connects to the self-diagnosis connector. It makes the installation very
simple. Due to the advanced microprocessor and sophisticated firmware, the GIpro DS
offers faster and more reliable readings than competing products.
The unit is also the smallest, most compact gear indicator available, making it easy to
mount at the instrument cluster.
2. Specifications
- Supply voltage: +8V to +24V
- Maximum supply current at 12V: 80 mA
- Reverse polarity and transient protection on all leads
- Unit size: 20 x 30 x 13 mm (0.7 x 1.2 x 0.5 inches)
- Operating temp: -40C to +80C (-40F to +176F)
- Waterproof (IP68)
3. Features
Fast and accurate
Instant and accurate indication of the selected gear (right after the clutch is released) for
added control and safety. The sampling period can be adjusted to make the response
quicker or slower, depending on shift speed and signal conditions.
Touch control
All settings can be done via the touch sensor so there’s no opening on the housing, it is
completely sealed and encapsulated in epoxy.
The touch sensitive area is on the TOP of the unit. However, after programming, the unit
can be mounted even with the top side stuck to the dashboard (via the sticky pads
supplied) and will function properly. It can also be used with the optional GIpro Mount.
Quick installation
Plug ‘n Go wiring harness, easy to mount display.
Complete installation can be done within 30 minutes on most Honda models.
Bright and effective display
Extra bright LED display, housed in a compact box. Available in 5 colors.
Auto brightness control
The brightness of the display is adjusted automatically according to the ambient light
intensity. The sensitivity of the sensor can be fine-tuned in the menu.
Auto Learning function
The unit learns the gear positions automatically, just start the learning function via the
menu.
Compatibility
Compatible with all HealTech and most aftermarket products, including quick shifters.
Robust design
- Full SMT-design, encapsulated in epoxy
- Flash memory to store user settings even with the battery disconnected
- Only inspected, high quality components are built in
- Each unit is extensively tested prior to shipping, guaranteed to work
- 100% waterproof (IP68)
4. Installation
- Find the RED, 4-pole diagnostic connector (also called as DLC), usually near the
ECU module. Normally it has a removable cap or “dummy” plug (without wires)
attached to it. The connector may be partially covered by black tape.
- Detach the cover (cap) from the plug and connect the GIpro plug.
- Route the cable to the mounting location along the frame.
- Peel the green plastic off from the back of the unit, and mount the display.
- Secure the cable with the cable ties supplied.
5. Operation
The unit must be programmed (going through the gears) after installation.
After programming, the unit will show the actual gear position while riding.
Your motorcycle is not equipped with Gear Position Sensor, therefore determining and
displaying the gear in use is only possible when the engine is running and the clutch is
fully released. At other times (clutch pulled-in, engine not running, bike stopped) the
display will show a “-” sign.
While riding, the GIpro will NOT show an incorrect gear in any circumstances, except for
a split second when the clutch is released slowly (slipping) during a back shift.
Note: If you notice that the unit no longer shows the gear positions correctly, Reset the
unit and Setup again. Normally this is necessary when the clutch switch is bypassed or
failing, or after installing a SpeedoHealer speedometer calibrator.
For best performance ensure that the clutch switch functions correctly, even if you
replace the clutch lever. If you must bypass the clutch switch, the unit will learn the new
signal conditions when you execute the Learning function.
6. Setup (menu)
There are several parameters which can be changed or fine-tuned under the menu.
If there are no gear positions stored in the unit, it automatically starts the Learning
function after power-up as per chapter 6.2
Sign Function Description See chapter
Code Reading the firmware version 6.1
Learning Learning the gear positions 6.2
Filtering Adjusting the filtering (sampling period) 6.3
Brightness Adjusting the sensitivity of the light sensor 6.4
Upside down Flipping the display upside down 6.5
Defaults Resetting all values to factory defaults 6.6
To access the menu, follow these steps, in this order:
- The TOP side of the housing is the touch sensitive area so it must be kept free, away
from all objects. If the unit is in a mount, remove it first.
- Have the gearbox in Neutral.
- Have the ignition OFF (the display must be blank).
- Turn the ignition ON and the engine stop switch to RUN position (the display should
count up and then show “0”). Wait at least 2 seconds.
- With your index finger (without gloves) tap the top side of the unit and hold your
finger until the first menu sign shows up. Remove your finger now.
Note: If the engine is started then accessing the menu will be disabled even if you come
to a stop. Cycle the ignition key to start over.
To review or change a parameter, use the following controls:
- Short tap (tap and release the touch sensor): next menu item / increasing the value
- Long tap (hold your finger on the touch sensor until the display changes): select / ok
6.1. Reading the firmware version
In the menu, select the “C” sign and do a long tap.
After this command, the firmware version number is shown (5 digits) repeatedly. If you
contact us for support please let us know this number.
To exit, do a long tap again or turn the ignition key off.
6.2. Learning the gear positions
If the unit does not indicate the gears correctly, start the Auto-Learning procedure.
Perform the steps either in the garage with the engine running (safely secure the bike on
a rear stand) or while riding normally.
In the menu, select the “L” sign and do a long tap.
1. When you see the “1” sign flashing, select 1st gear.
The “1” sign starts flashing faster, indicating that the learning is in progress.
2. When you see the “n” (next) sign, select the next gear. The gear number starts
flashing faster when the unit is learning the new gear position.
Repeat this step until all gears have been taught.
Note: If you’d like to cancel or start over the process, turn the ignition key off.
3. Keep riding in top gear until the “U” (update) sign starts flashing (if your bike has
5 gears only, it takes longer, about 15s). The unit is now programmed and should
indicate all gears correctly.
Note: On power-up, the unit will count up from 1 to the number of gears programmed. If
the learning procedure can not be completed, check the connections.
6.3. Adjusting the filtering
In the menu, select the “F” sign and do a long tap.
The filtering (sampling period) can be adjusted to make the response quicker or slower
during a gear change. It can be adjusted in 10 steps (from 0 to 9).
The factory default value is 4. Before changing this parameter, be sure to run the
Learning procedure first.
- If the shift speed is quick (e.g. a quick shifter is used) and the indicated gears are
always correct then DECREASE the value for faster response.
- If you notice that sometimes wrong gear is indicated momentarily during a
gearshift or under hard acceleration, INCREASE the value for slower response.
Note: if wrong gear is displayed even with the filtering set to 9, there’s a problem with
the speed or RPM signals or the clutch is slipping.
6.4. Adjusting the sensitivity of the light sensor
In the menu, select the “b” sign and do a long tap.
The ambient light sensor sensitivity can be adjusted in 10 steps (from 0 to 9).
The factory default value is 4. DECREASE the value if you’d prefer less brightness.
INCREASE the value if more brightness is desired.
Note: If you set the value to 9, the brightness will be always at maximum, regardless of
the ambient light intensity.
6.5. Flipping the display upside down (or vice versa)
In the menu, select the “u” sign and do a long tap.
The display is flipped.
6.6. Resetting all values to factory defaults
In the menu, select the “d” sign and do a long tap.
This command will restore the factory defaults:
- Learning: gear positions get cleared, Learning function starts
- Filtering: 4
- Brightness: 4
- Upside down: normal view
7. Cleaning the display
Clean the display with wet sponge. Use pure water only, without any detergents.
Do not clean with dry cloth as it may scratch the front face. Do not spray high pressure
water directly on the display.
8. Warranty
The unit is completely sealed and epoxy encapsulated, which gives extreme protection
for the internal parts from shocks, vibrations and water.
To ensure trouble-free operation from the start, all units have been extensively tested
prior to shipment.
Our dealers are offering a 30-day money-back guarantee on HealTech products, thus you
will get your money back if the product does not fulfill your expectations. (All parts must
be returned in original condition for full refund.)
Furthermore the product is covered by our 2-year replacement warranty from the date of
purchase.
